High-modulus carbon pro gravel bike, internal cable routing,
Optional drivetrain packages:
• SENSAH HRD6900-R: Hydraulic 2×12S
• SENTYEH ES7000: Wireless hydraulic 1×13S
• SHIMANO GRX600: Hydraulic 1×11S
Carbon integrated handlebar & seat post, matched hydraulic disc brakes.
Wheel: 700C AL7005 alloy double wall rim. Frame sizes: 46cm / 49cm / 52cm / 55cm.

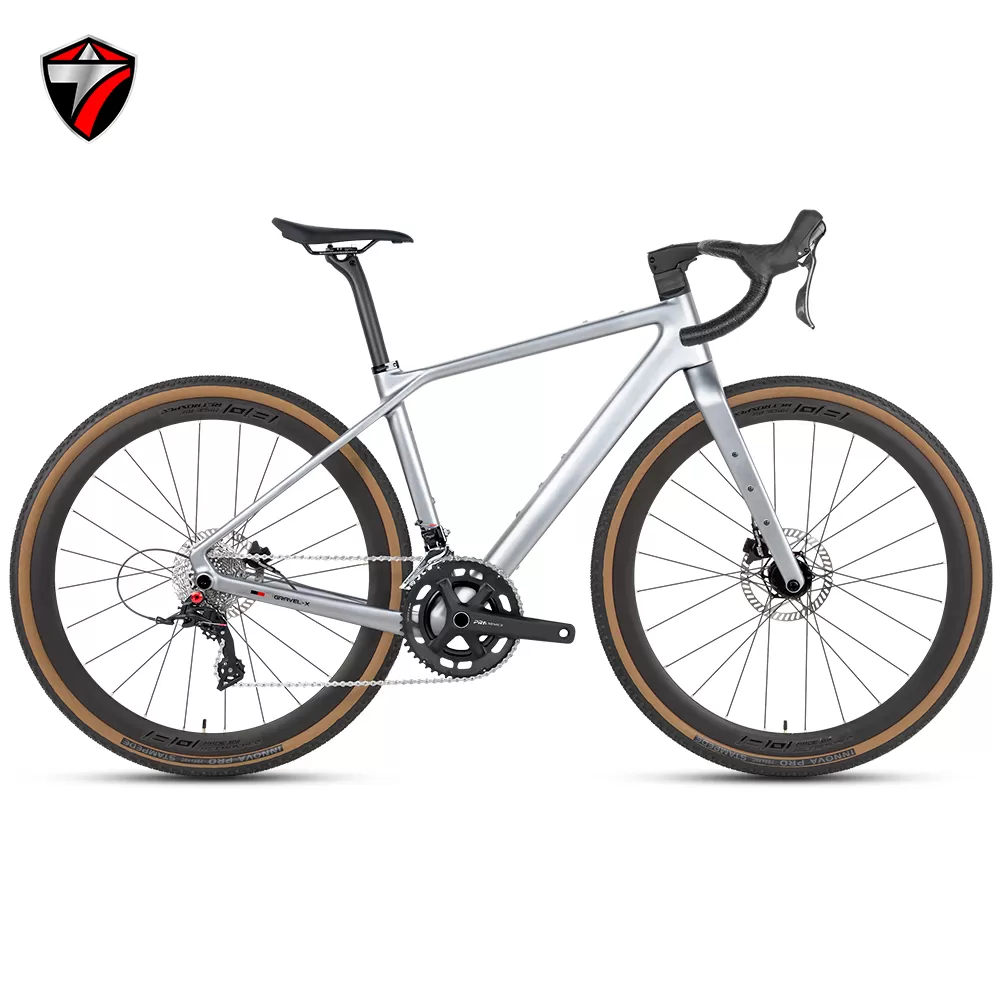

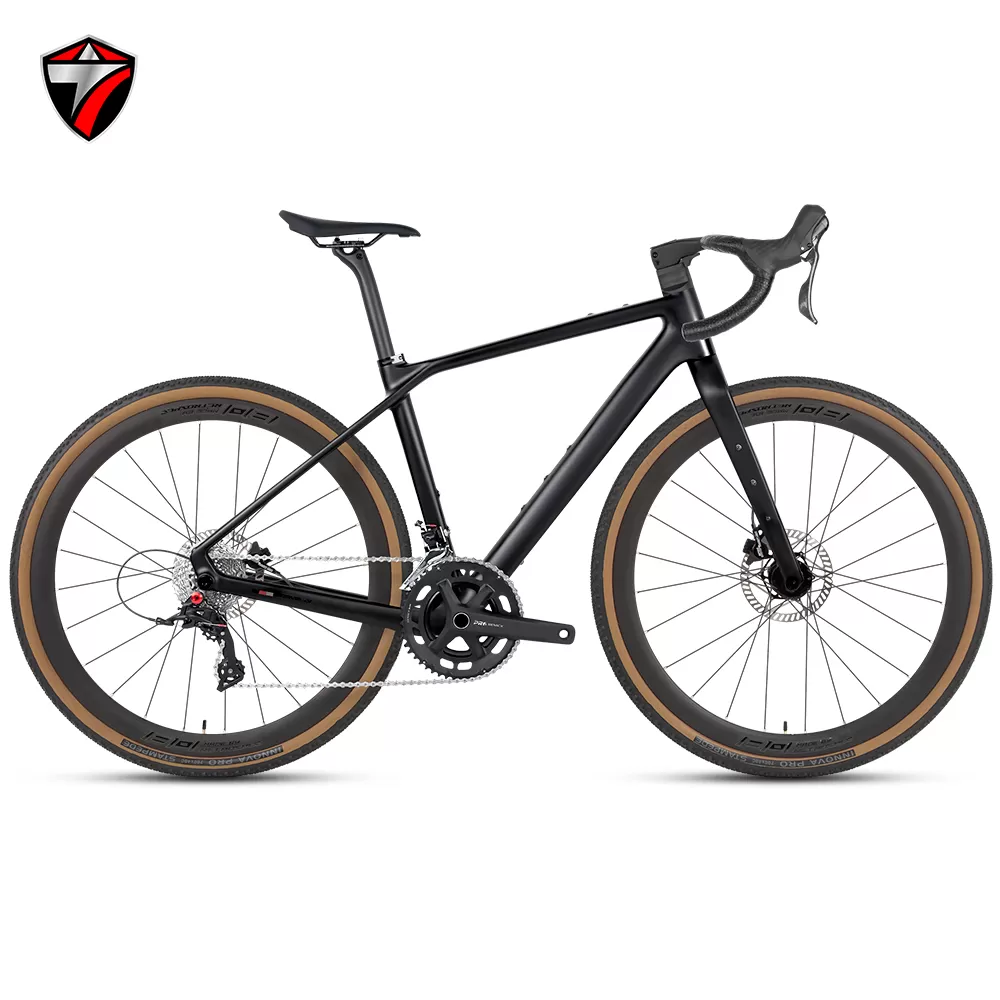

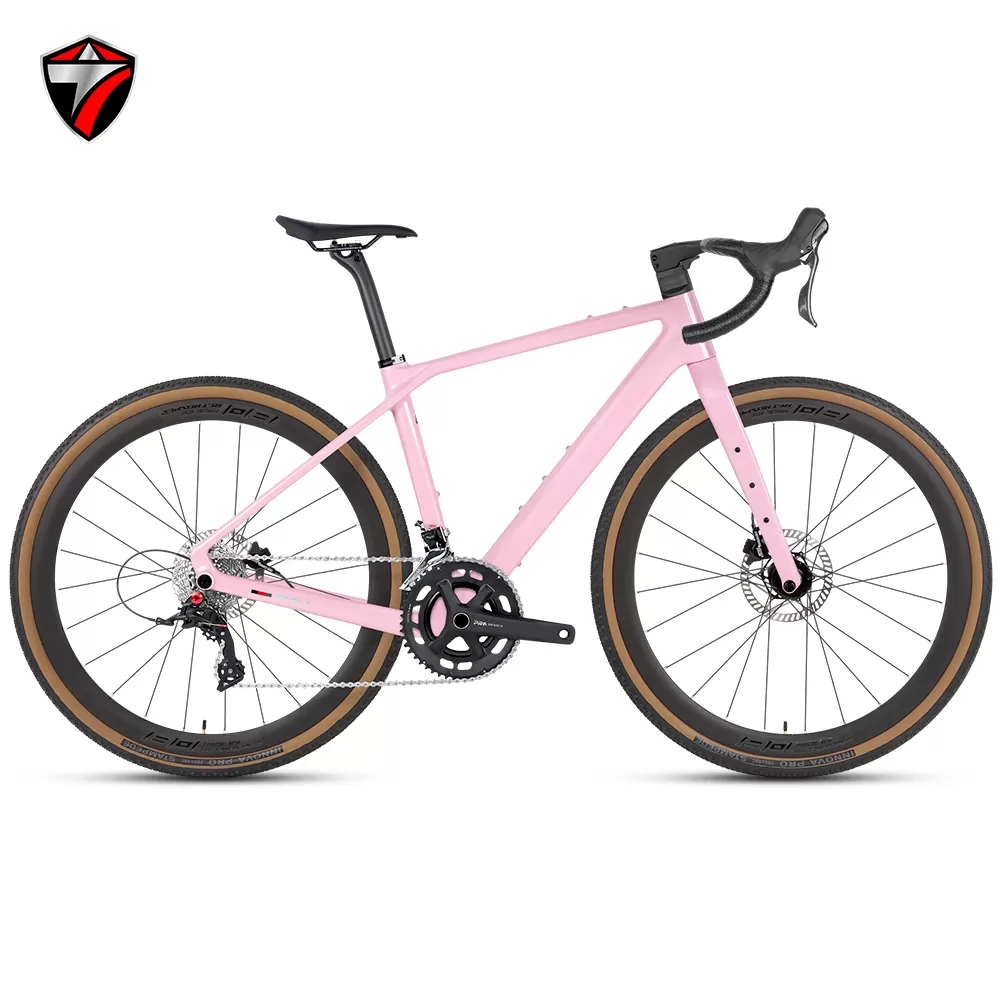

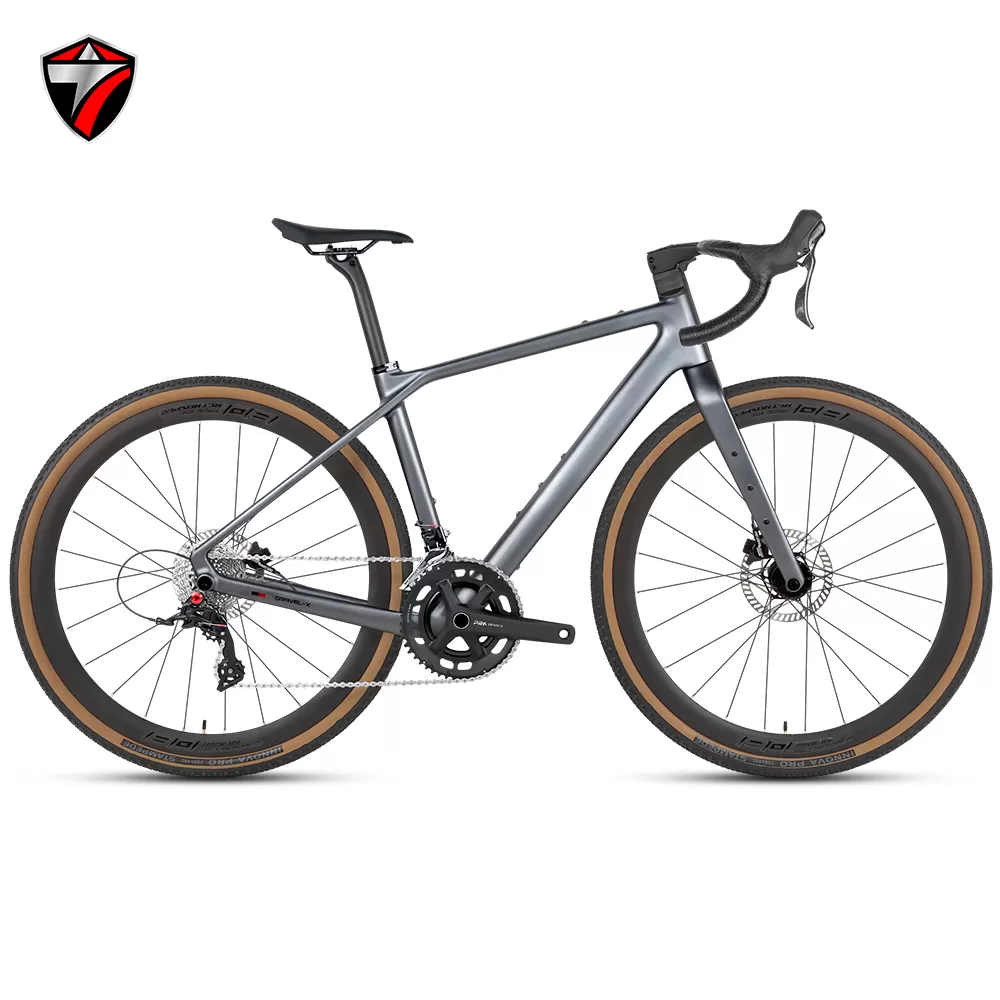

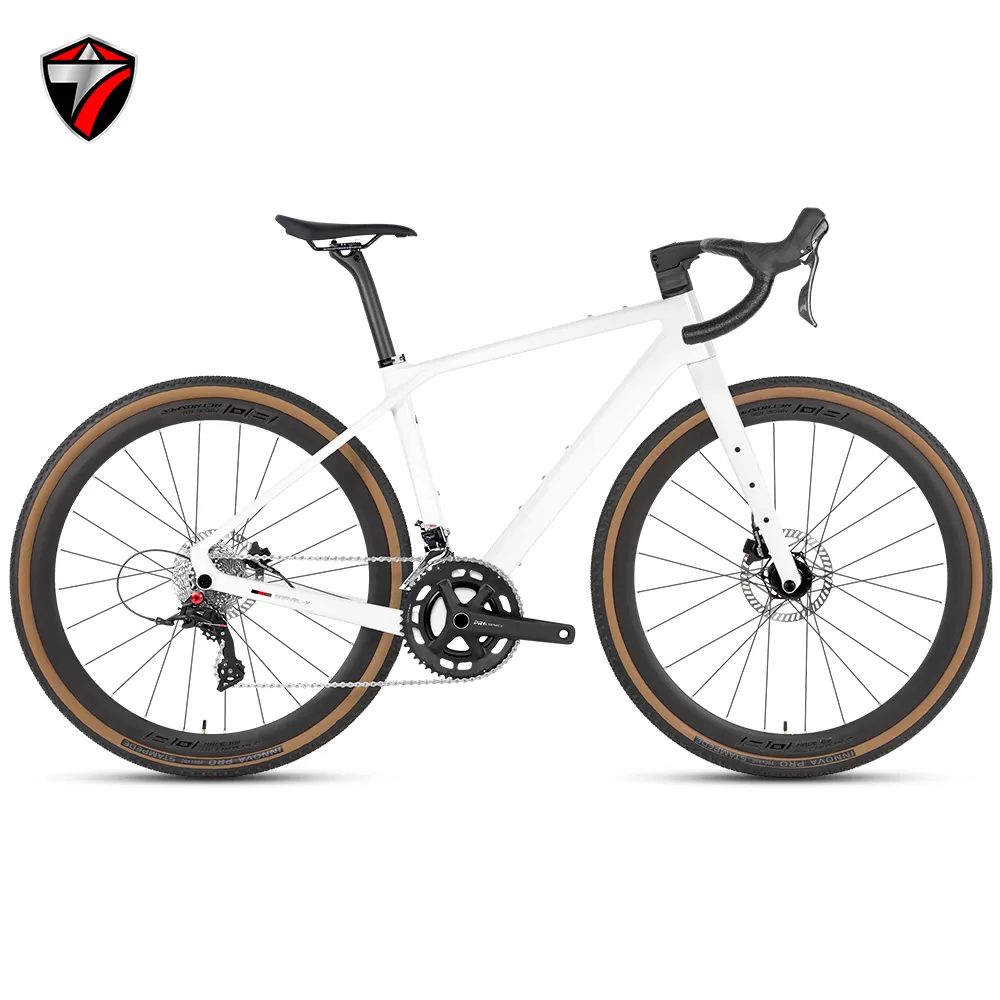

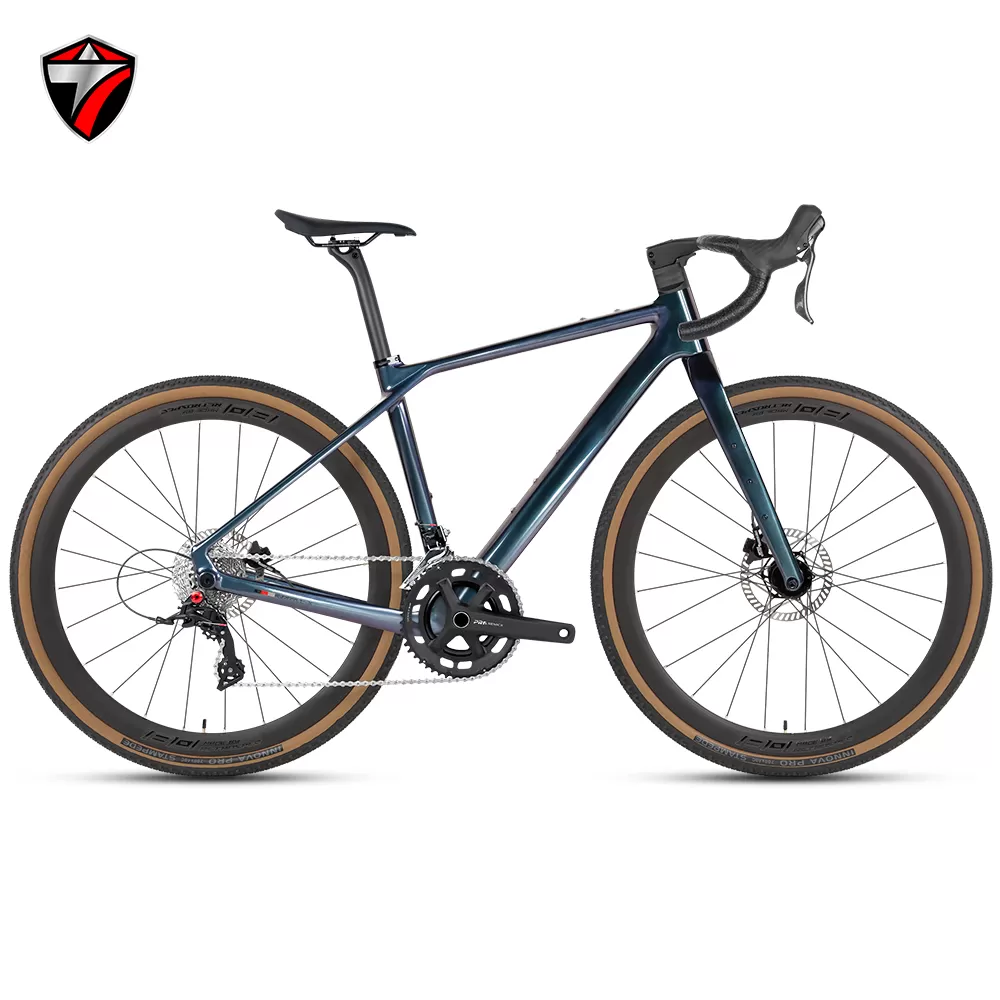

Colors: White, Matte Black, Matte Dark Gray, Bean Green, Sakura Pink, Full Holographic.
| ***Shenzhen First Technology CO.,LTD. ***TWITTER.Bicycle - Configuration+Quatation | |||
| Bike Model | Gravel X | ||
| ConfRev | RS-24S, hydr, alloy wheel | ES7000- 13S wireless, hydr, alloy wheel | GRX600-11S, hydr, alloy wheel |
| Wheel Size | 700C | ||
| Frame Height | 46cm / 49cm / 52cm / 55cm | ||
| Bike Color | White / MatteBlack / MatteDarkGray / BeanGreen / SakuraPink, Full Holographic | ||
| Net Weight | 9.9KG | 9.9KG | 9.9KG |
| Frame | Gravel X (disc&thru-axle 12×142), High modulus Carbon fiber, Pro-Gravel, Inner-Cables | ||
| Handelbar Sets | High modulus Carbon fiber, Integrated Handlebar&Stem(420*90mm),full Inner-Cables | ||
| Seat Post | High modulus Carbon fiber, 31.6*350mm | ||
| Clamps | Alu Alloy,Single Bolt Lock, 34.9mm | ||
| Fork | Gravel X (disc&thru-axle 12×100), High modulus Carbon fiber,XC,700C | ||
| Head Sets | Alu alloy CNC with sealed-Bearings 52*52mm | ||
| Washer | Dedicated for Inner-Cables | ||
| Derailleur Handle | RS(SENSAH HRD6900-R)-2*12S, hydr | SENTYEH, ES7000 - 1*13S (wireless&hydr) | SHIMANO RX600 -11S, hydr |
| Front Derailleur | RS(SENSAH Z2)-2S | None | None |
| Rear Derailleur | RS(SENSAH RD8500-GS)-12S | SENTYEH, ES800GS - 13S (wireless) | SHIMANO RX812 -11S |
| Cranksets | SENICX -PR6, Alu alloy, Hollow 34-50T | SENICX -FD5, Alu alloy, Hollow 42T | SENICX -FD5, Alu alloy, Hollow 42T |
| Cassettes | SUNSHINE-12S, 11-34T | SUNSHINE-13S, 11-46T | SUNSHINE-11S, 11-42T |
| Chain | SUMC-12S | SUMC-13S | SUMC-11S |
| BB | Threaded T47*24mm, Hollow&sealed Bearings | Threaded T47*24mm, Hollow&Bearings | Threaded T47*24mm, Hollow&Bearings |
| Brake | RS(SENSAH HRD-G100)Hydr.disc,160/160 | SENTYEH, G7000 Hydr.disc,160/160 | SHIMANO RX400 Hydr.disc,160/160 |
| Hubs | RS, Alu alloy&carbon fiber,4-sealed Bearings,HG, F24*R24H,Disc&thru-axle F12*100_R12*142 | ||
| Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H30mm×700C | ||
| Spoke | SHUNJIU,Circular 14G | ||
| Tyre | INNOVA PRO，700C*40C, Skin-color edge | ||
| Belt | PU with Comfortable&Skid resistant | ||
| Saddle | Comfortable&lightweight for racing | ||
| Pedals | Alu alloy, Lightweight&Skid resistant | ||
| Cables | JAGWIRE | ||
