| TWITTER Bike - Complete Vehicle Configuration and Quotation | |||
| Vehicle model | T8-ET (28 speed) | ||
| Standard Category | Wheel Peak 2 * 14 speed electric transformer oil disc aluminum ring | Wheel Peak 2 * 14 Speed Electric Transformer Oil Disc Wave Carbon Ring | |
| Wheel diameter size | 700C | ||
| Frame height dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||

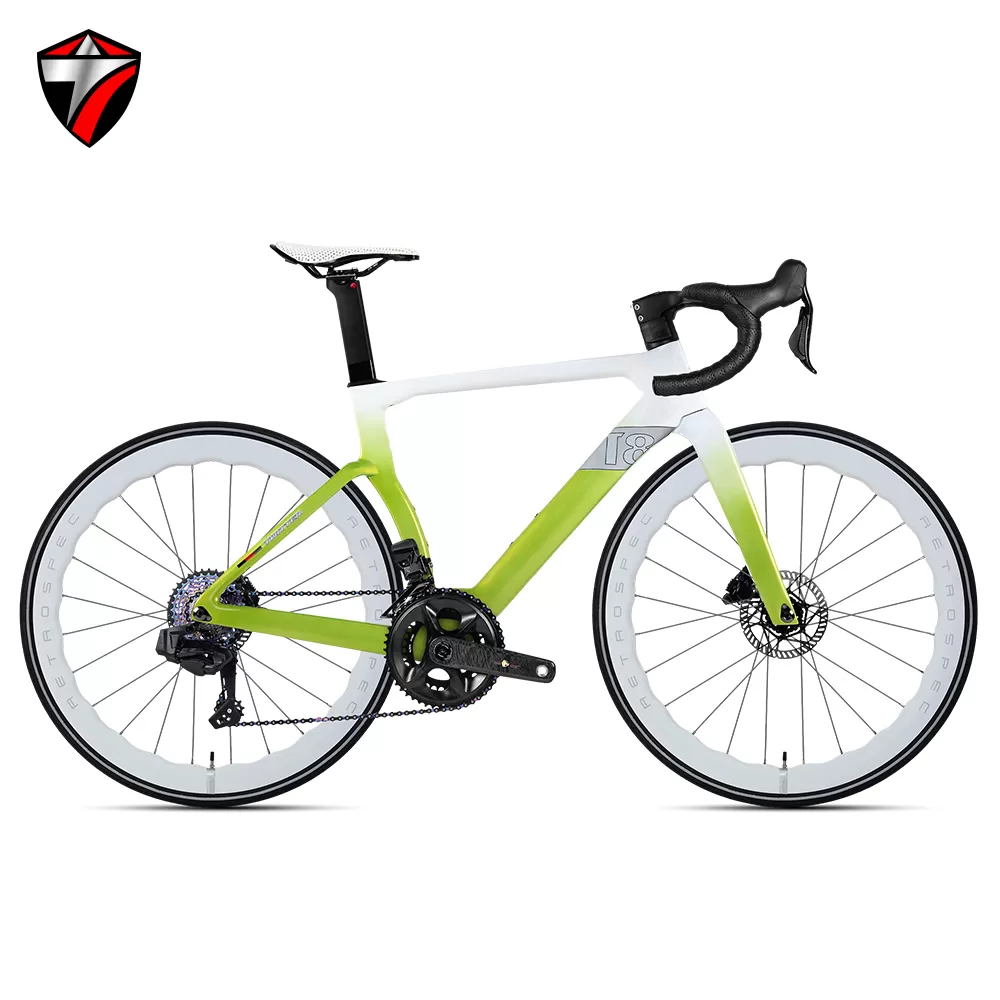

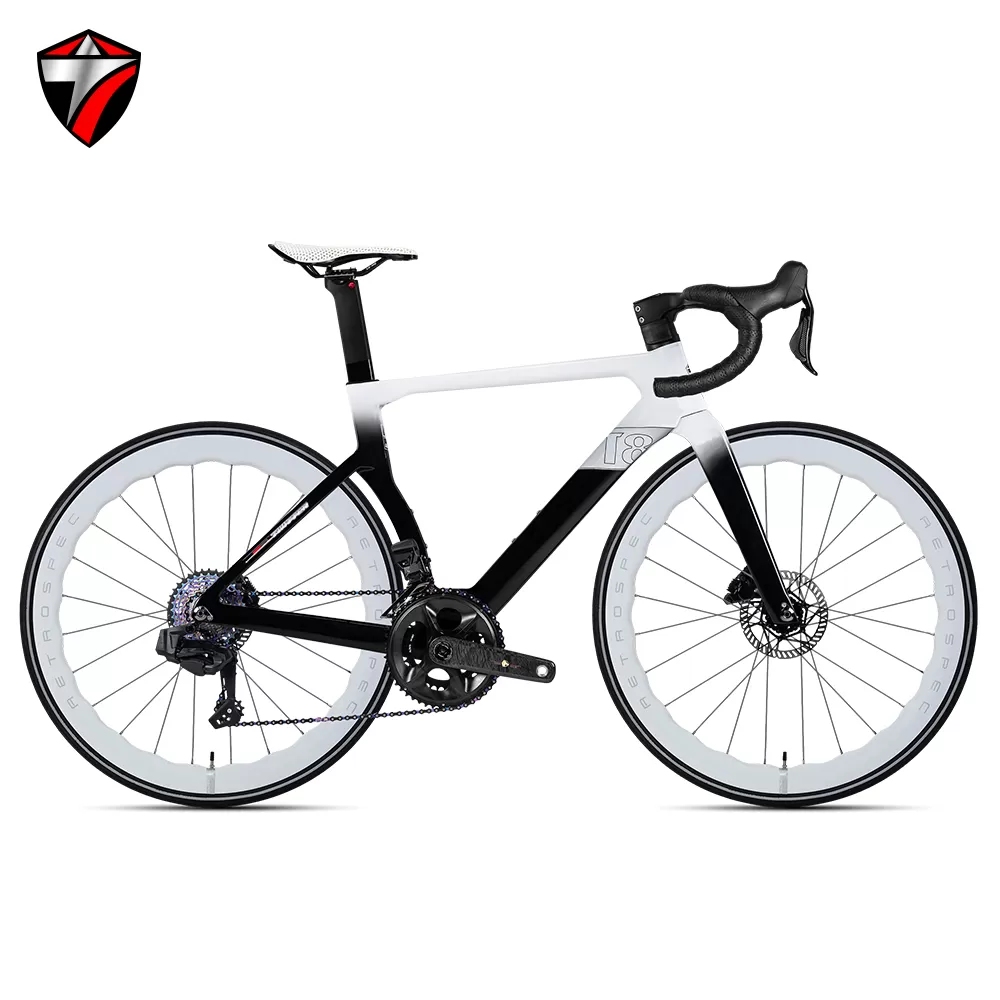

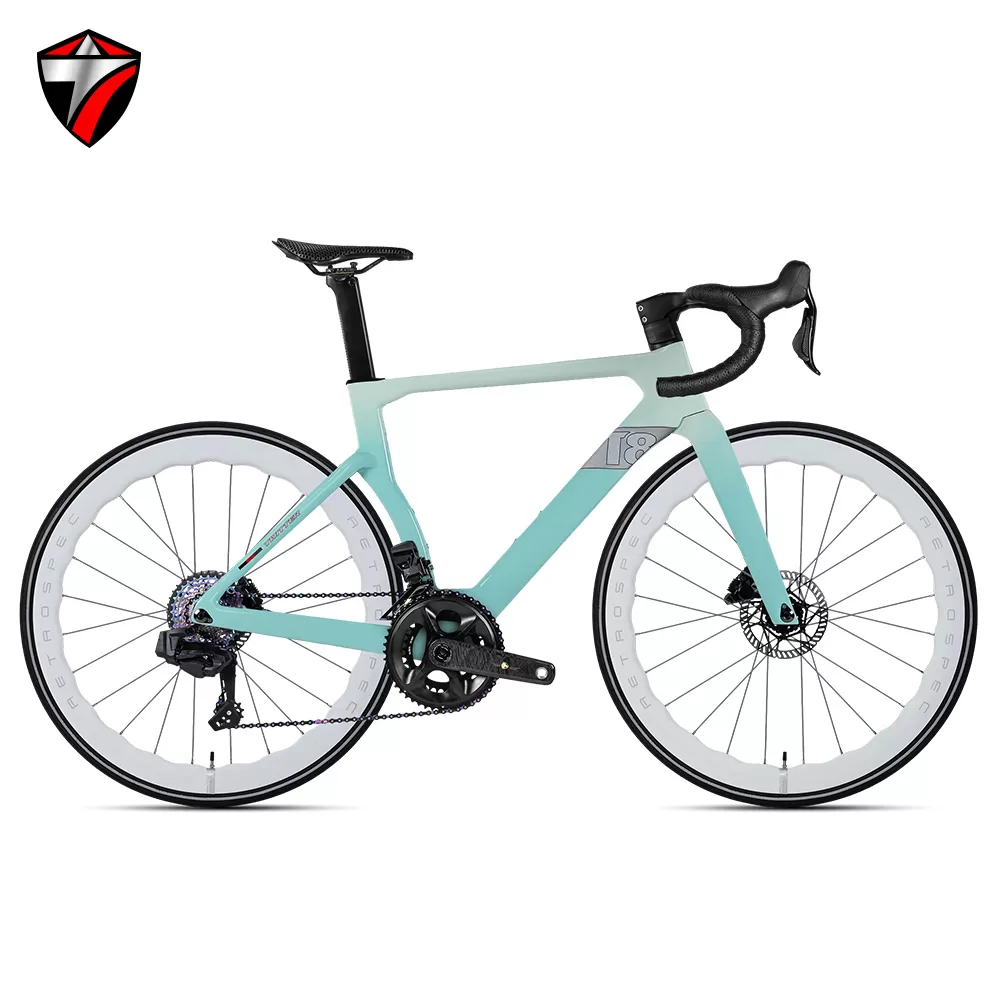

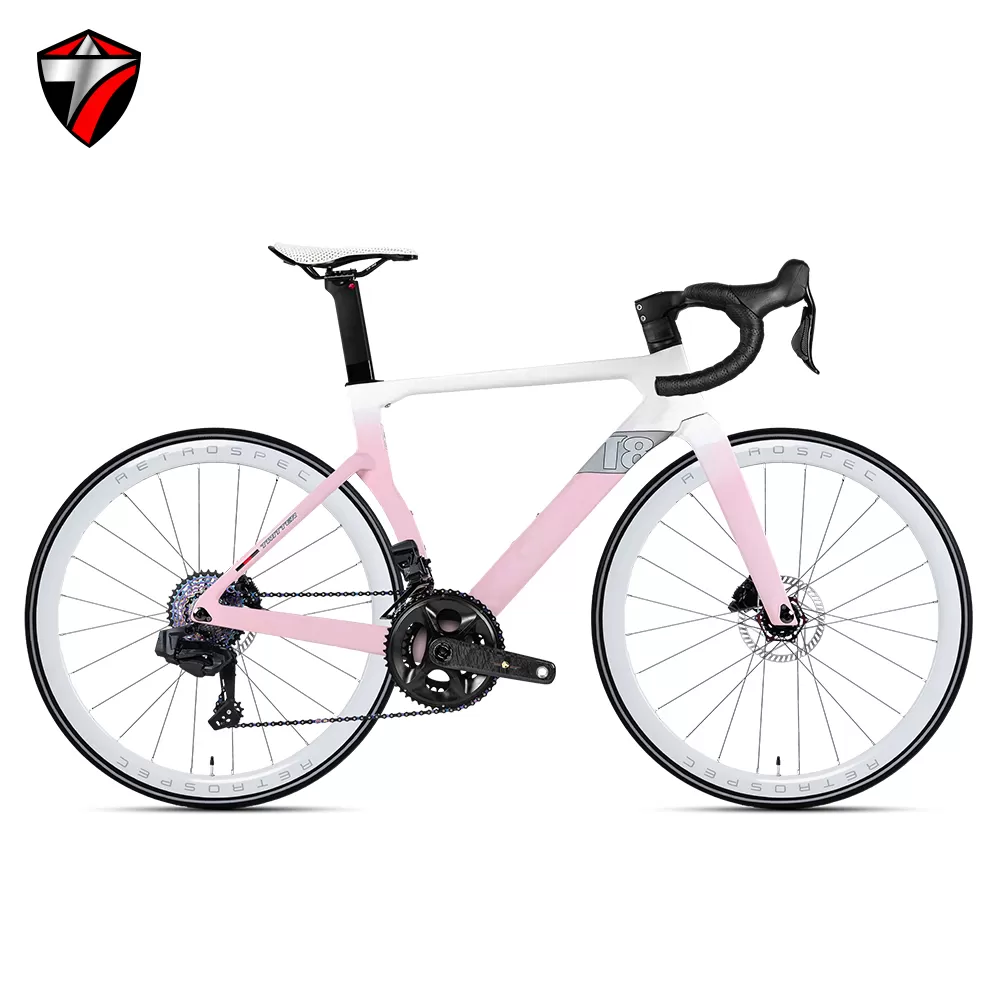

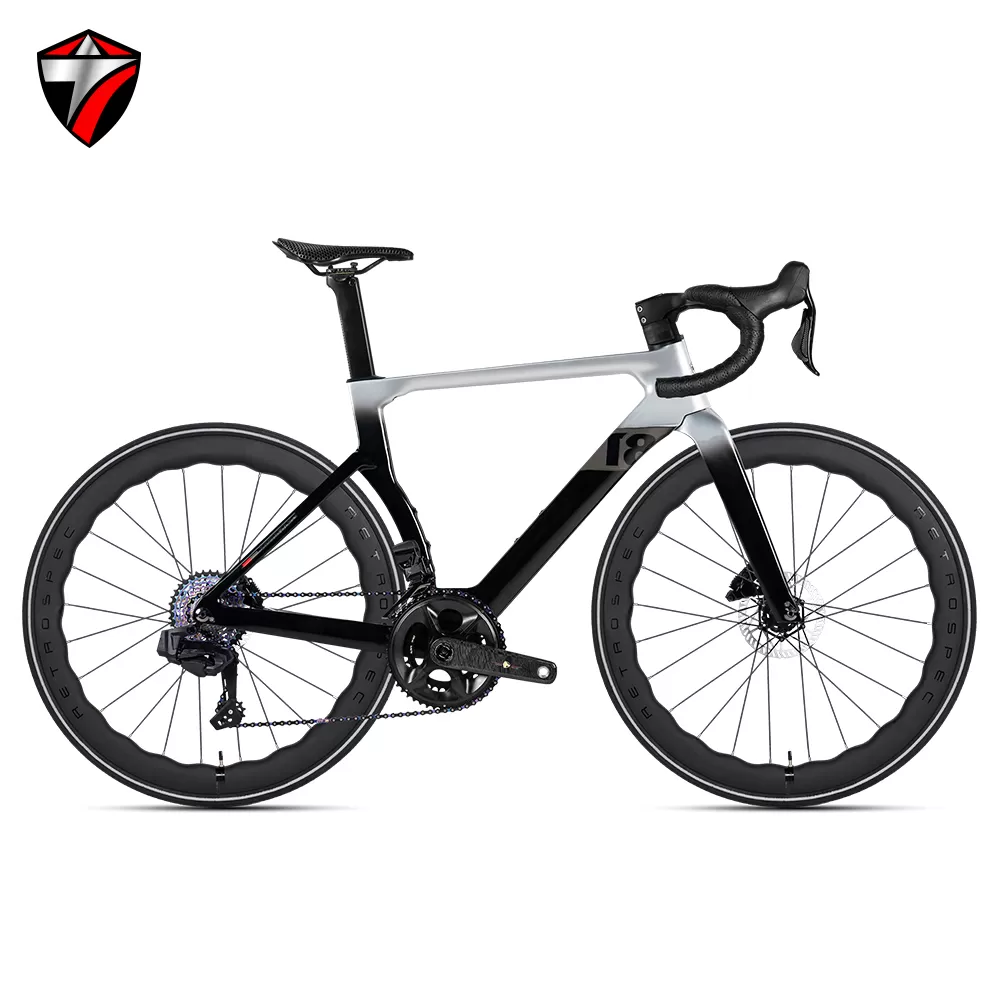

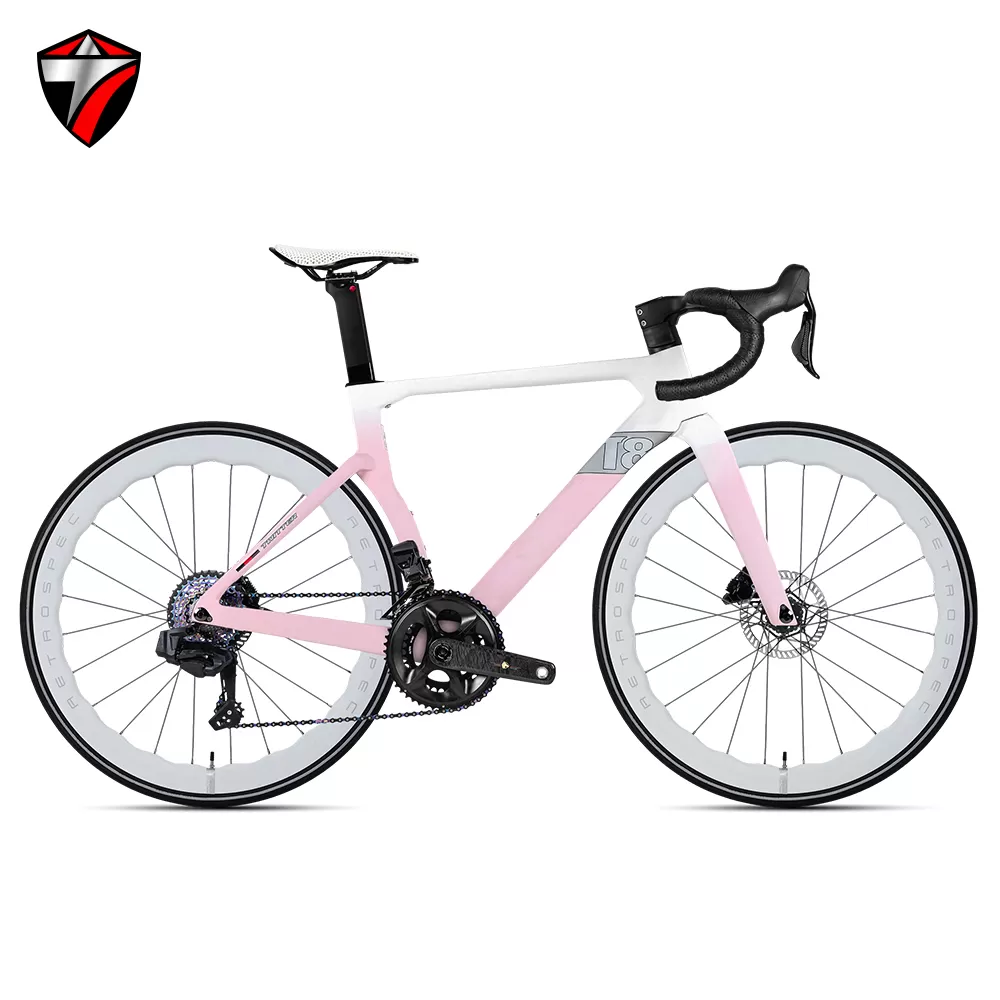

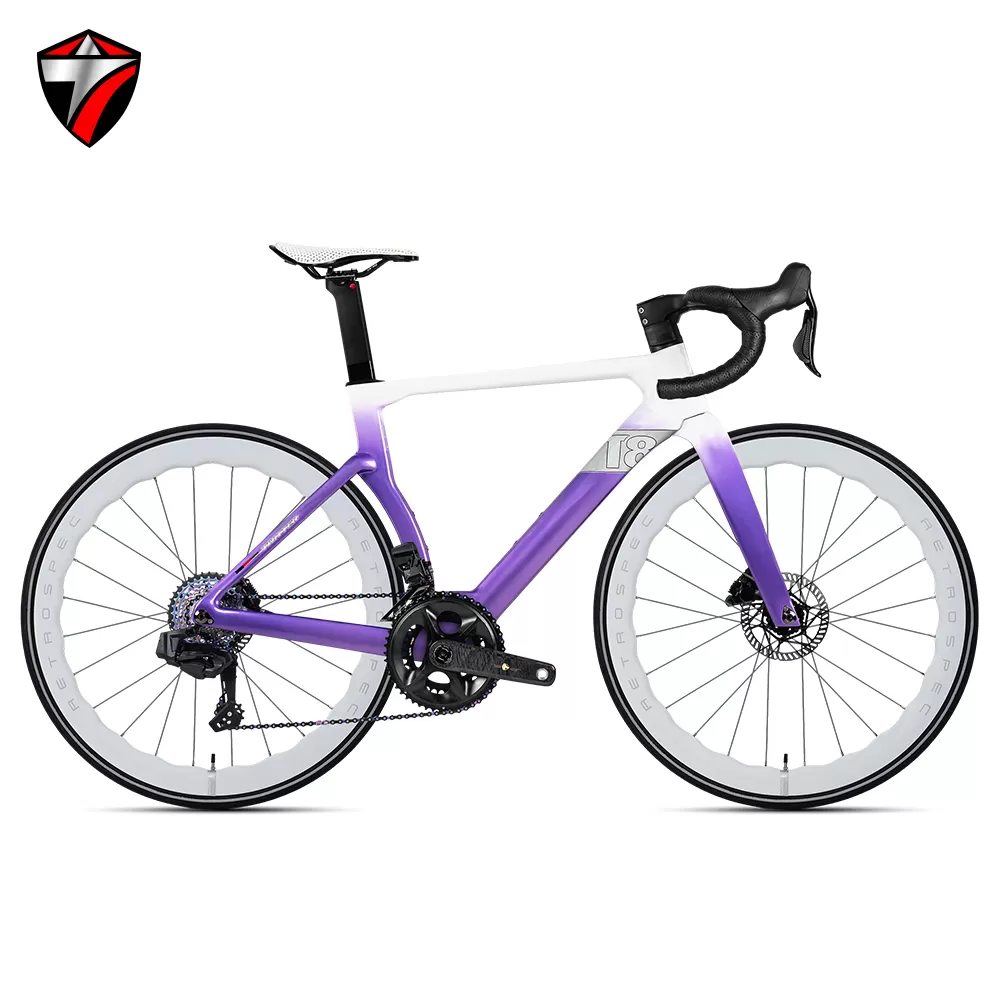

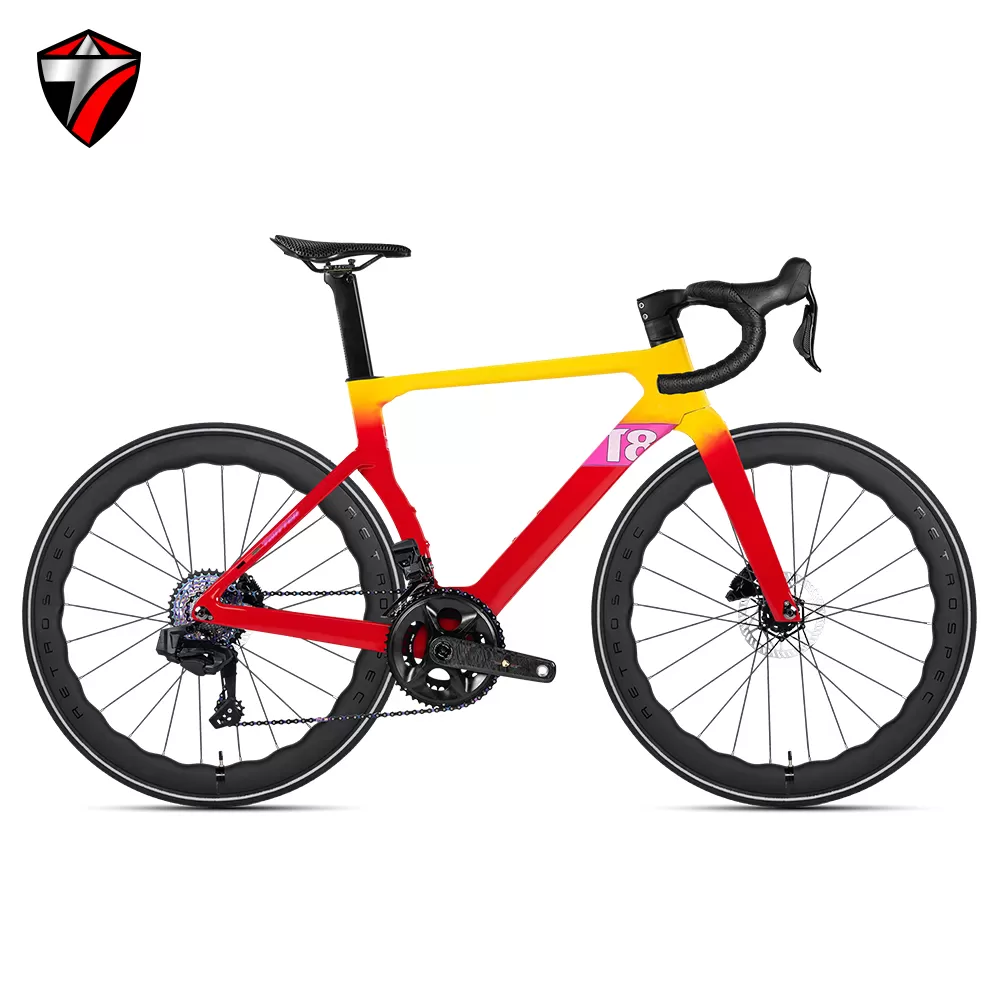

| Vehicle color | Black dark gray/purple white/black and white, color changing black | ||
| Net weight of the whole vehicle | 8.8KG | 8.7KG | |
| frame | frame | T8-ET (disc brake drum shaft 12 * 142) high modulus carbon fiber/wind breaking racing/internal wiring/matte or glossy paint/UV laser marking | |
| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 420 * 90mm/full internal wiring | |
| seat tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| pipe clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||
| front fork | front fork | T8-ET (Disc Brake Barrel Shaft 12 * 100) High Modulus Carbon Fiber/Highway Hard Fork/UV Laser Label | |
| Headset | Peilin 52 * 52mm | ||
| grommet | Dedicated for internal wiring | ||
| variable speed | Hand changes | WheelTop wheel peak, EDS TX Wireless Transformer -2 * 14 Speed (Oil Disc Manual Transformer) | |
| Front Derailleur | WheelTop wheel peak, EDS TX Wireless Transformer -2 Speed | ||
| Rear derailleur | WheelTop wheel peak, EDS TX wireless variable -14 speed | ||
| Crankset | Carbon fiber marble pattern crank - AL7075 disc - DUB hollow integrated 34-50T (can be modified with 105 discs, can be equipped with a power meter) | ||
| flywheel | CNC hollow integrated colorful flywheel -14 speed, 10-36T | ||
| chain | SUMC-14 speed, black dazzling color | ||
| axis | DUB thread T47 * 29mm press in, hollow Peilin | ||
| brake | brake | WheelTop wheel peak, flat all oil disc brake, mid lock colorful 160/160mm | |
| Wheel set | Flower drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/middle lock/disc brake barrel shaft F12 * 100_S12 * 142 | |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/38mm frame height/700C | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| spoke | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tire | Innova Foldable with Reflective Edge, 700 * 27C | ||
| other | tape | PU breathable, comfortable, non slip | |
| seat cushion | 3D printed seat cushion | ||
| pedal | Lightweight aluminum alloy anti slip | ||
| Conduit | JAGWIRE | ||
