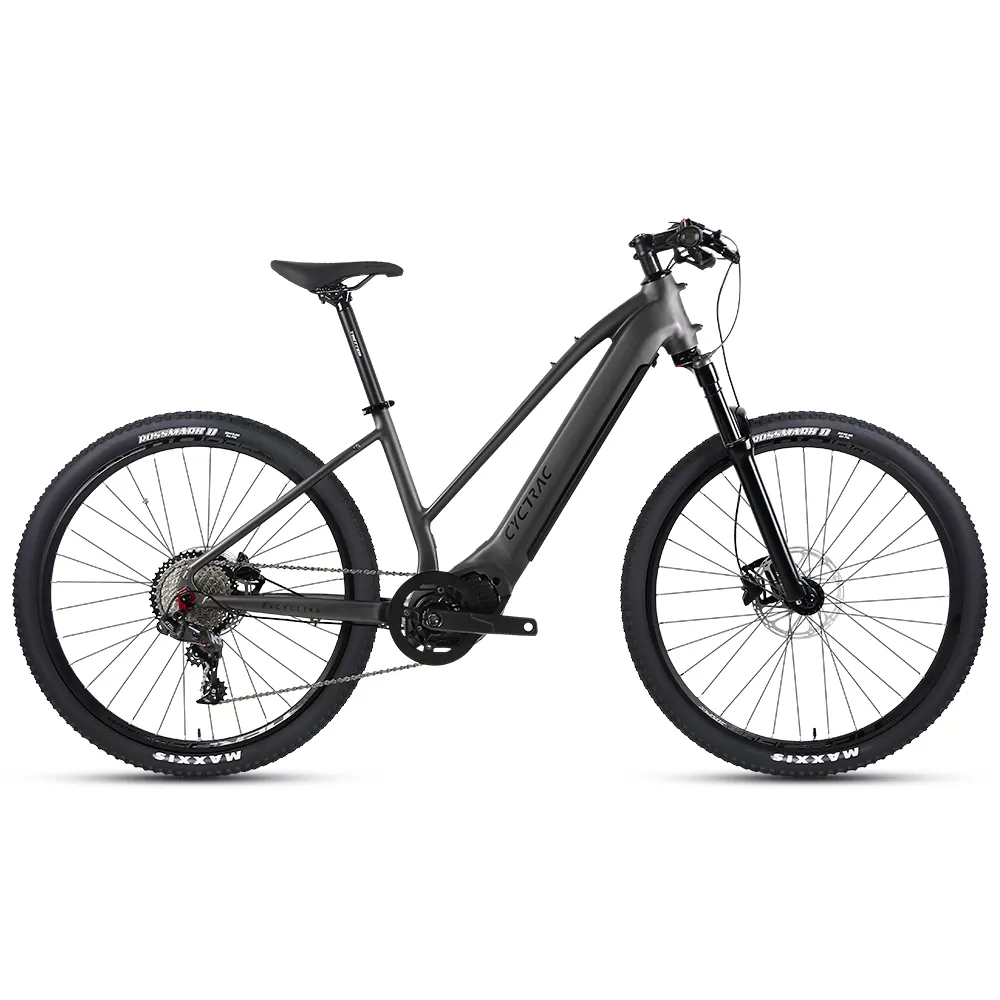

| Bike Model | EC1 | ||
| ConfRev | M510+36V20A(48V15A) | ||
| Frame Size | 27.5×16" | ||
| Bike Color | MatteBlack / MatteDarkGray | ||
| Net Weight | 22.2KG | ||
| Frame | CYCTRAC, EC1, Alu alloy AL6061,Flat weld&Smooth,Inner cables | ||
| Handelbar Sets | Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR | ||
| Fork | RS, MgAl alloy, Air suspension, Remote | ||

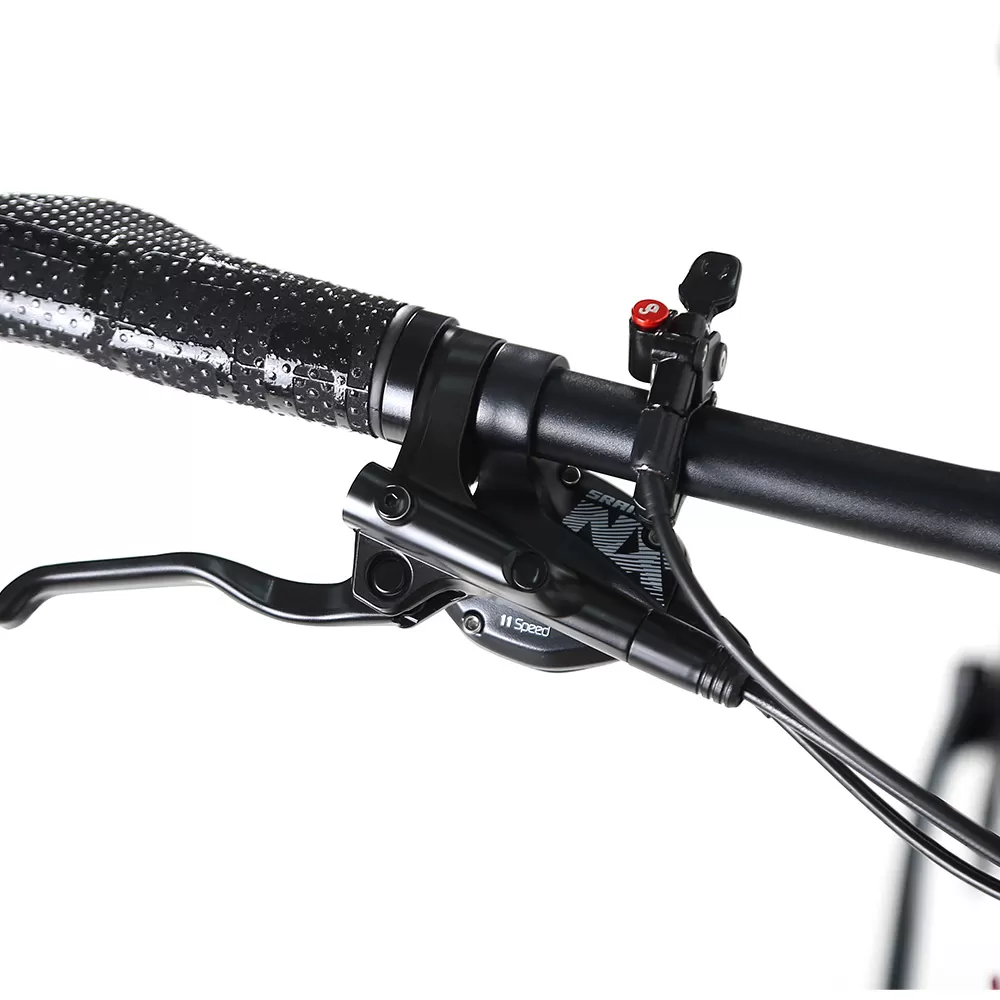

| Derailleur Lever | SRAM NX-11S | ||

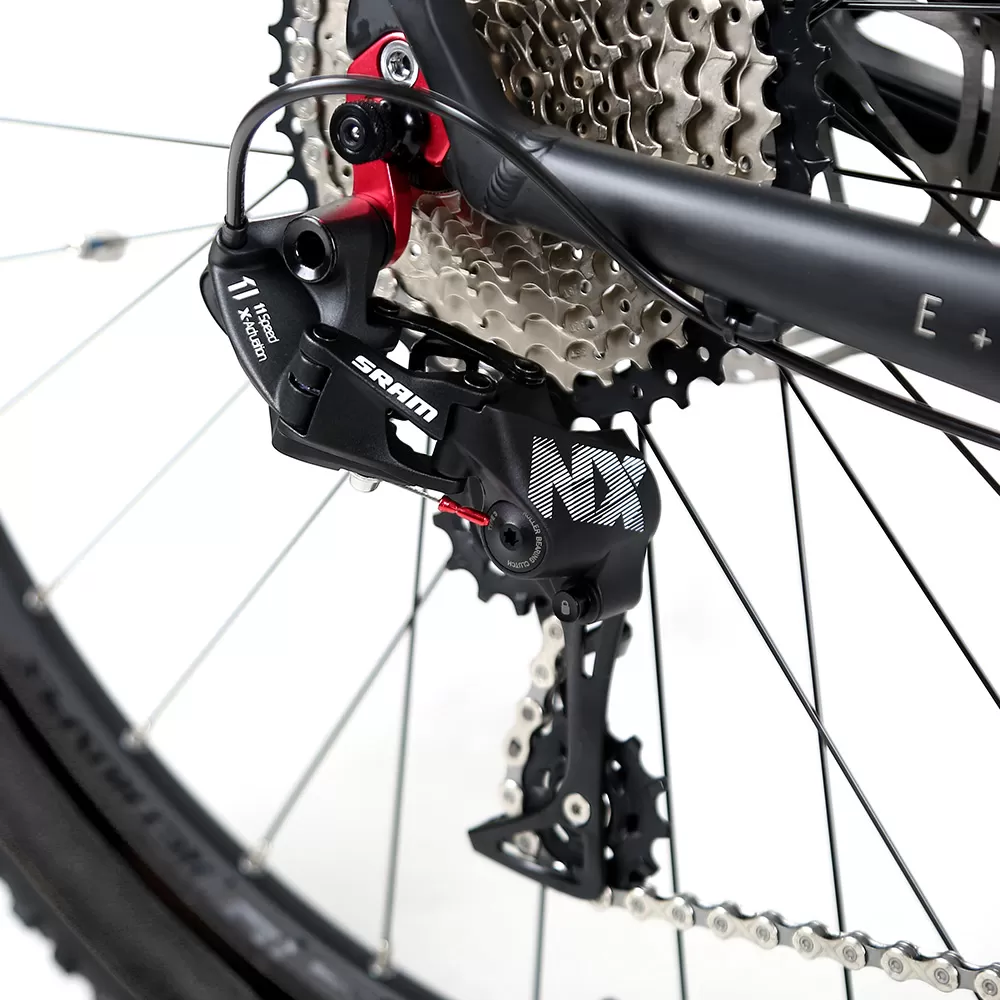

| Rear Derailleur | SRAM NX-11S | ||
| Cranksets | Matching with Mid Motor, 38T | ||

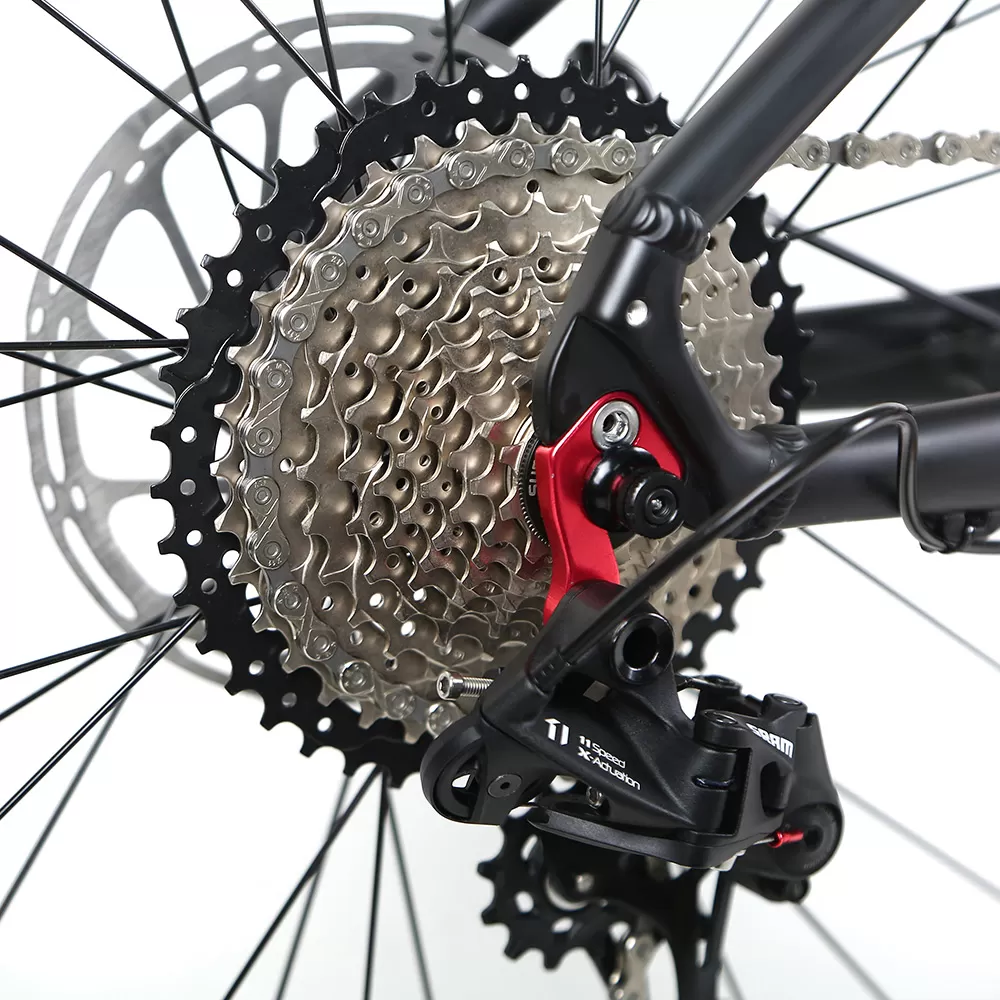

| Cassettes | SUNSHINE-11S,11-42T | ||
| Chain | SUMC-11S | ||

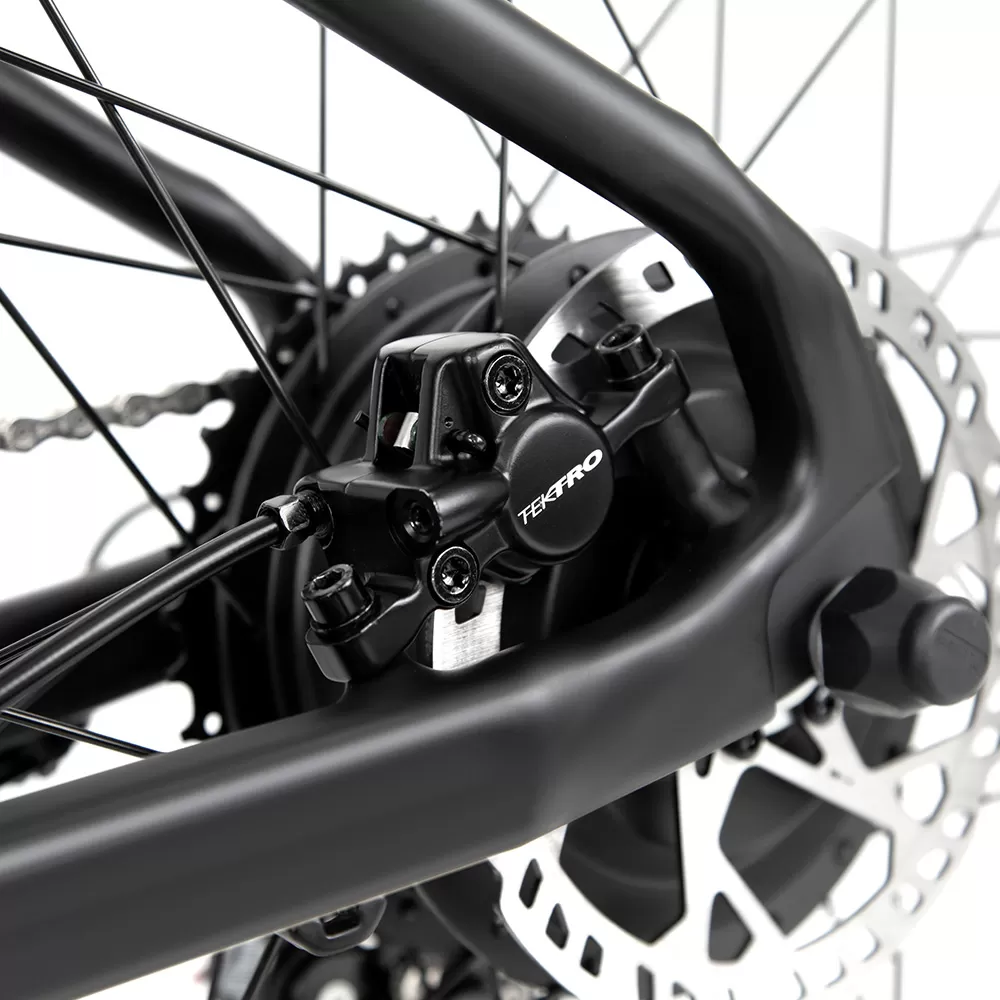

| Brake | TEKTRO-M275 hydraulic disc brake,180/180mm | ||
| Hubs | Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes | ||
| Rim | Alu alloy with Double-wall&Rivets, W25×H21mm | ||
| Spoke | SHUNJIU, Circular 14G | ||
| Tire | MAXXIS, 27.5×2.25" | ||
| Grips | Circular 22.2×120mm, PU leather&locking Ring | ||
| Saddle | Comfortable for MTB | ||

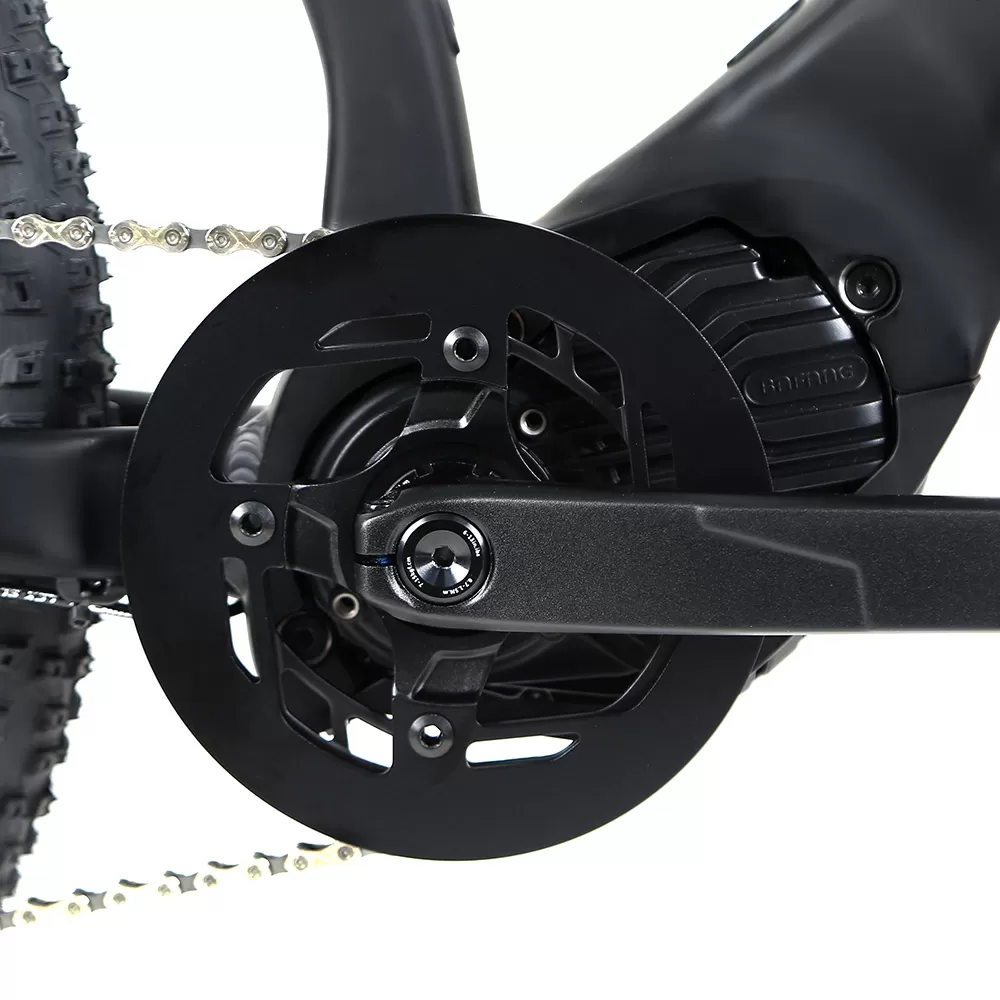

| Motor System | Bafang Mid, M510, 36V250W (48V250W) | ||
| Max Torque | 95 N.m (Peak 130N.m) | ||
| Speed Limit | 25KMh Default (max 45KMh) | ||
| Pedal Sensor | Torque+Speed(cadence) | ||

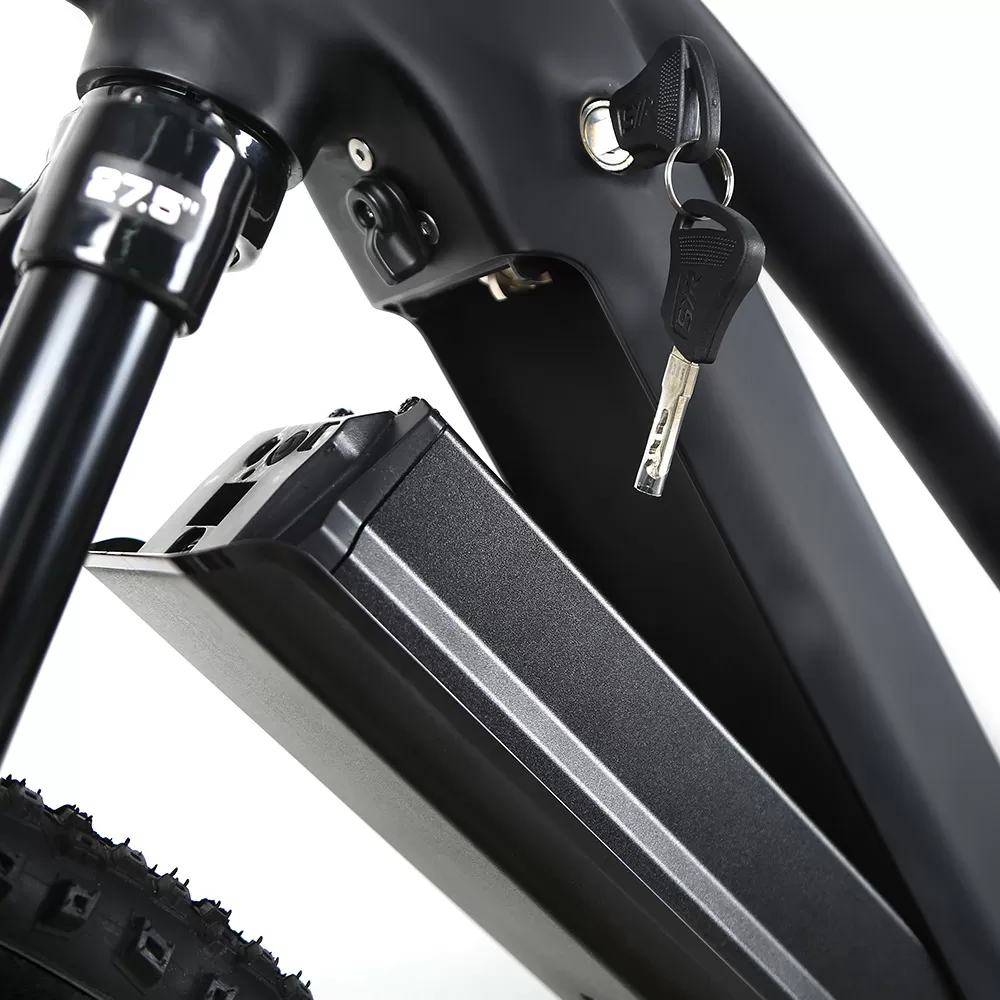

| Battery | Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A) | ||
| Endurance | Max 130-150KM (pedal assist) | ||
| Charging Time | 6-7 Hours | ||
| Charger | 3A, DC2.1 | ||

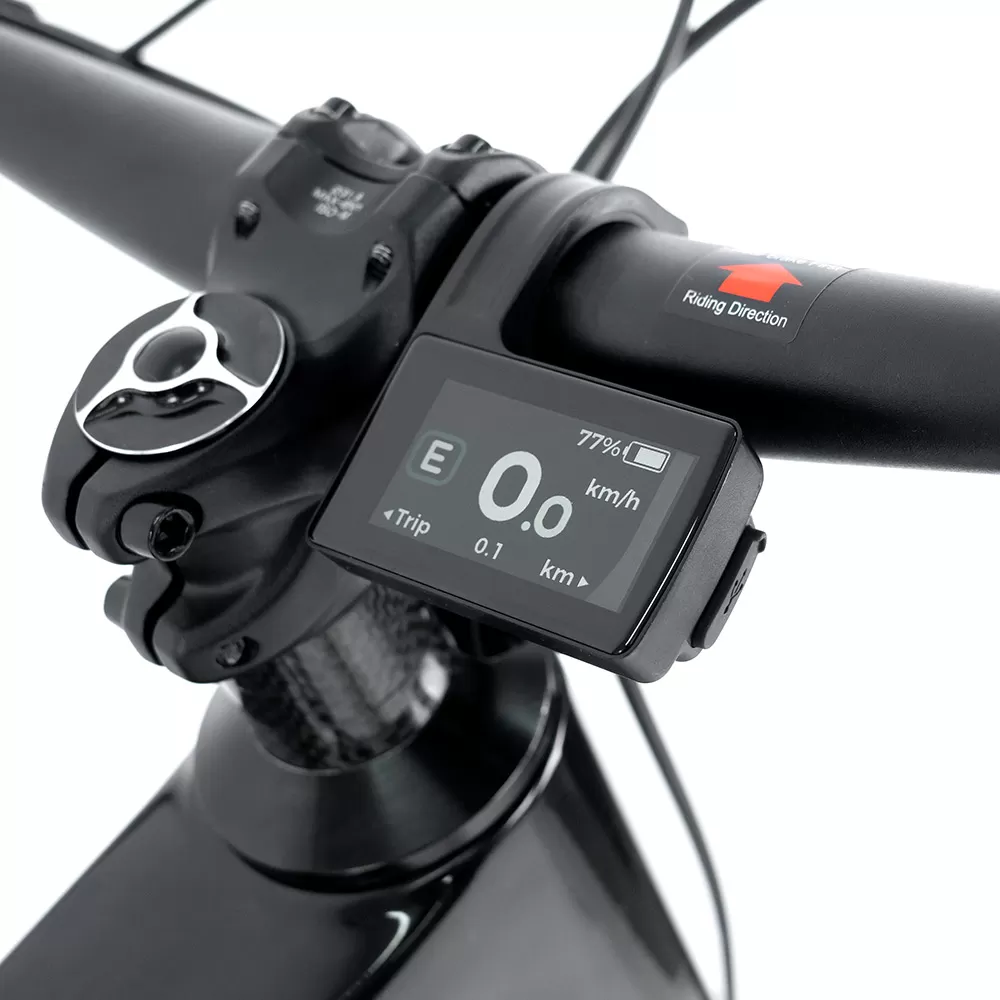

| HMI | Bafang-C245, LCD digital | ||
| Waterproof | IP X6 | ||
| Max Load | 130 KG | ||
