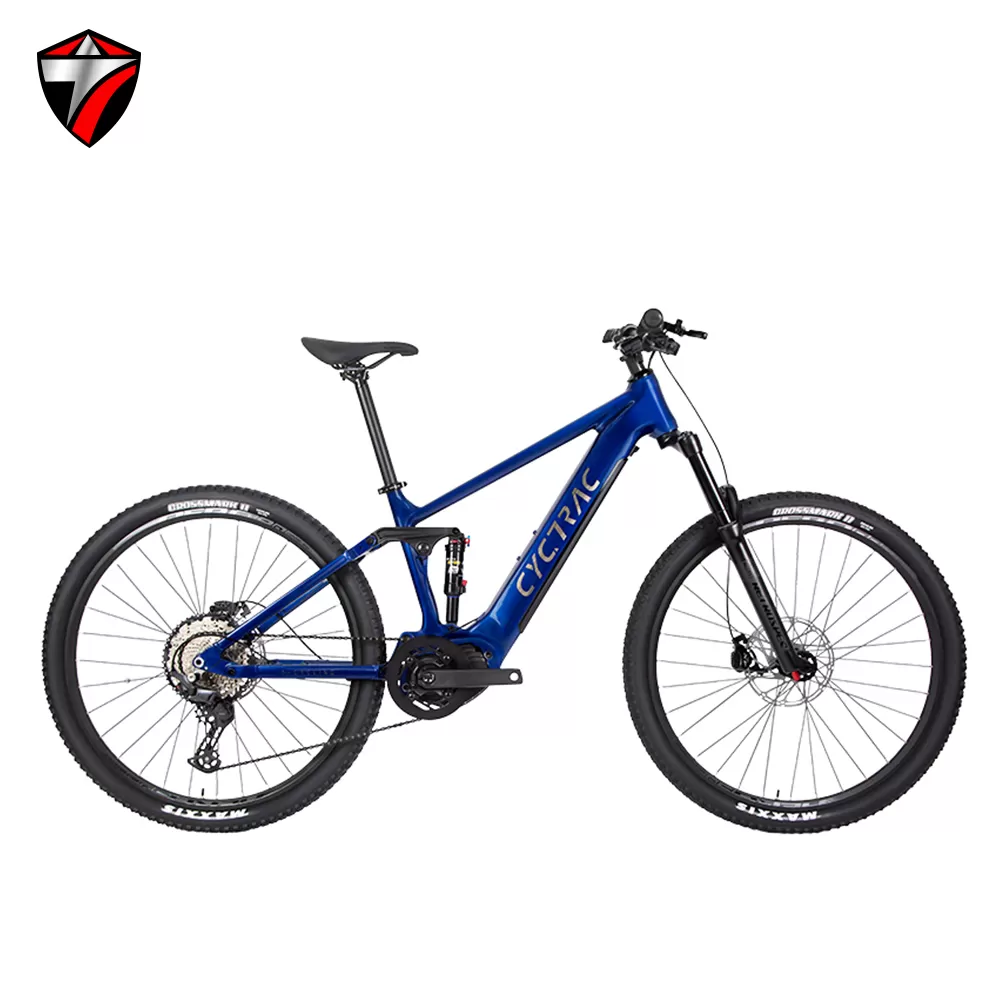

| Bike Model | EM6-2rd | ||
| ConfRev | M6100/12S+M510+36V20A (48V15A) | M6100/12S+M560+48V15A | Wheeltop 12S+M560+48V15A, HIGH |
| Frame Size | 29(27.5)×16" / 18" | ||

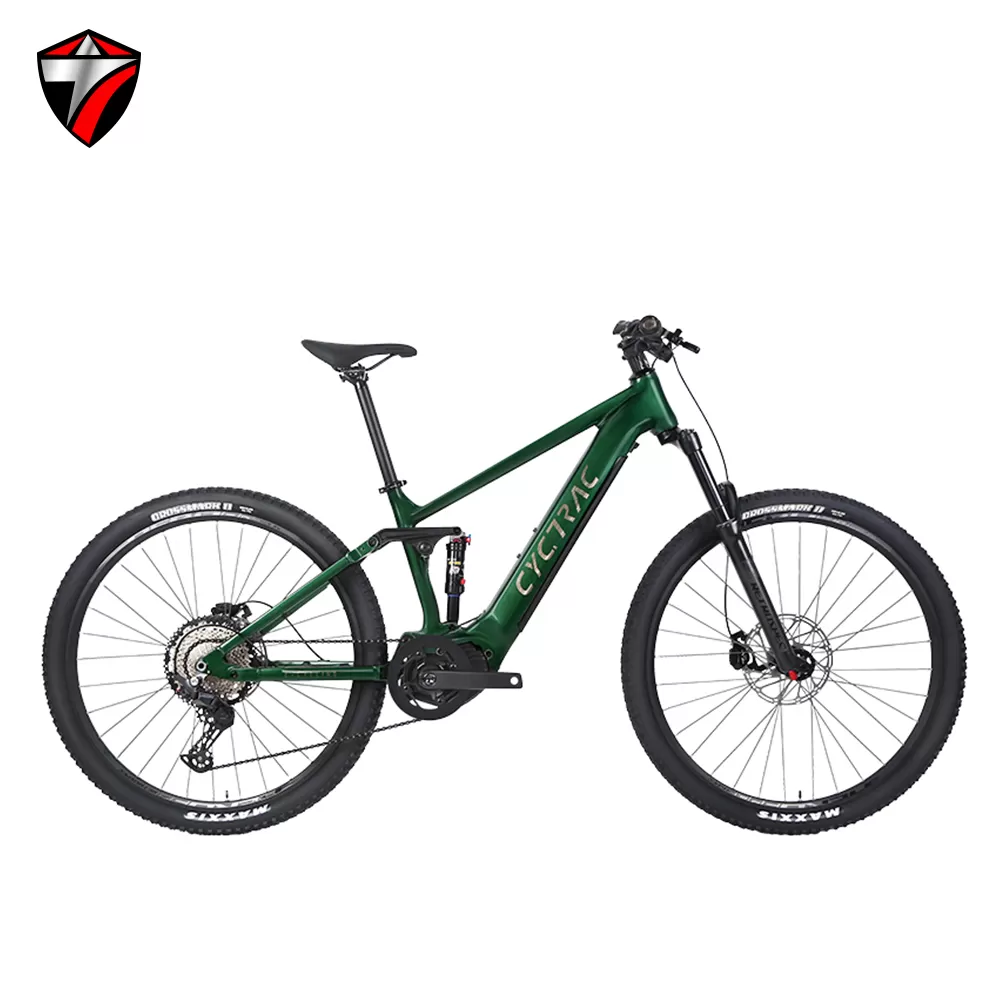

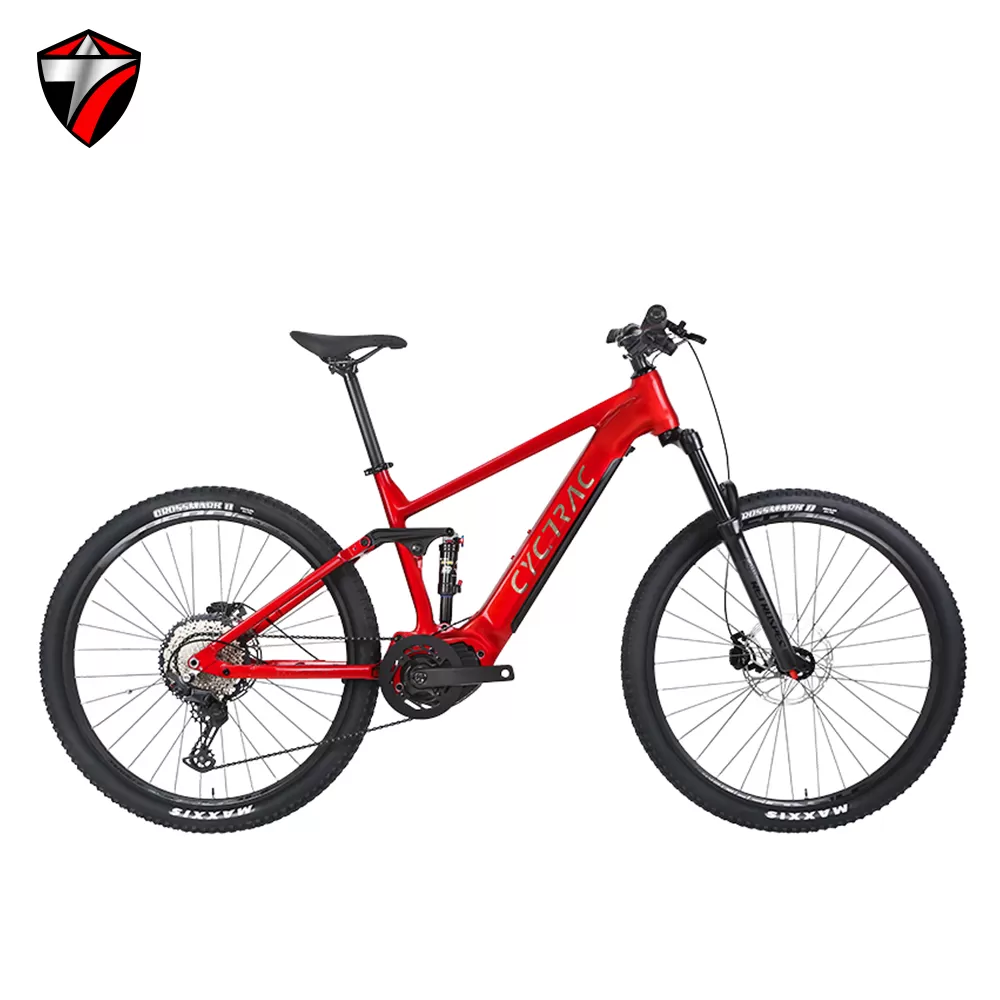

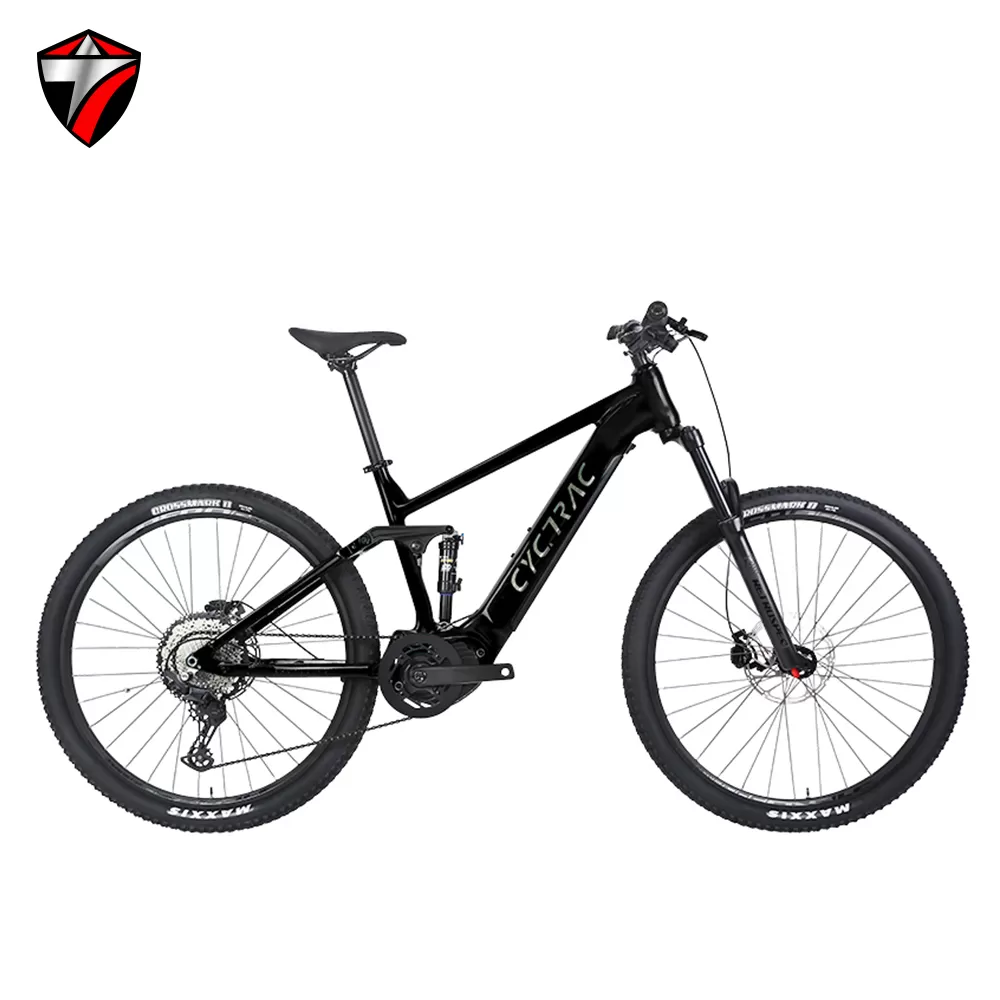

| Bike Color | MatteBlack / DarkGreen / DarkBlue / DarkRed | ||
| Net Weight | 24.5KG | 24.9KG | 25.7KG |
| Frame | CYCTRAC, EM6, AL7005,Flat weld,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55 | ||
| Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 60, Clamps 34.9mm | ||
| Seat post | RS, Alu alloy,Matte, 31.6×350mm | RS, Alu alloy,Matte, 31.6×350mm | KS adjustable lifting with hydr., Remote,31.6**395*125 |
| Fork | MgAl alloy,Air, Remote,Thru-axle 15*110 | MgAl alloy, Air, Manual,150,Thru-axle | ROCKSHOX-RECON, Air, Manual,150,Thru-axle 15*110 |

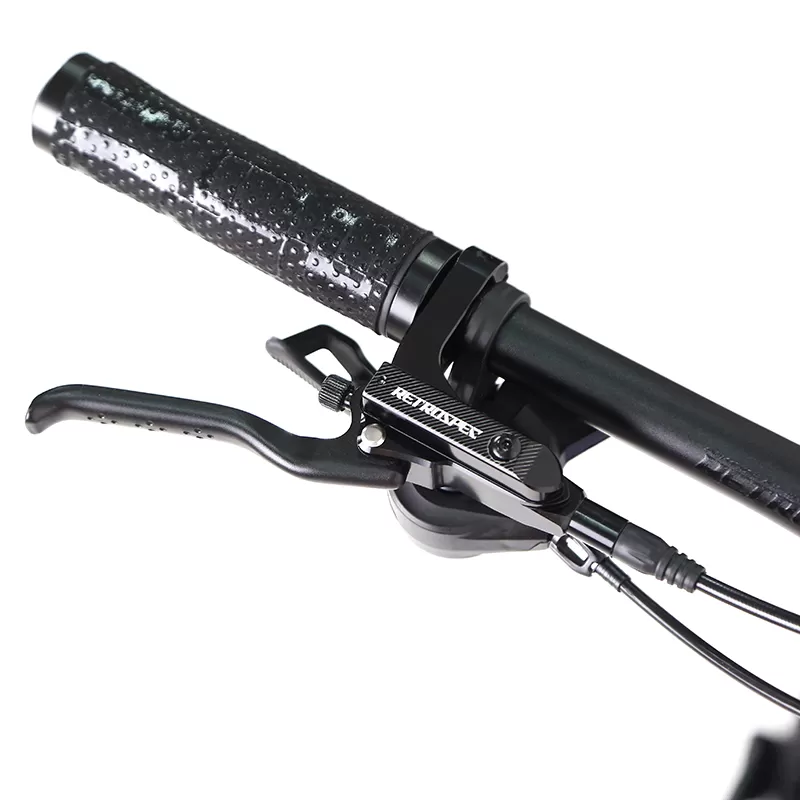

| Derailleur Lever | SHIMANO DEORE/M6100-12S | SHIMANO DEORE/M6100-12S | Wheeltop EDS OX-12S wireless |

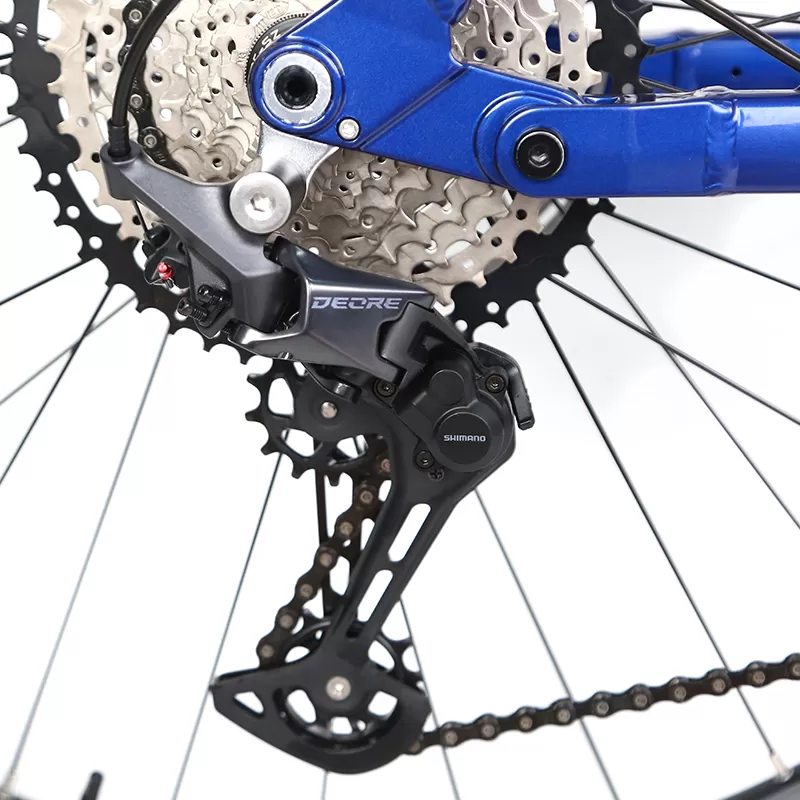

| Rear Derailleur | SHIMANO DEORE/M6100-12S | SHIMANO DEORE/M6100-12S | Wheeltop EDS OX-12S wireless |
| Cranksets | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T |

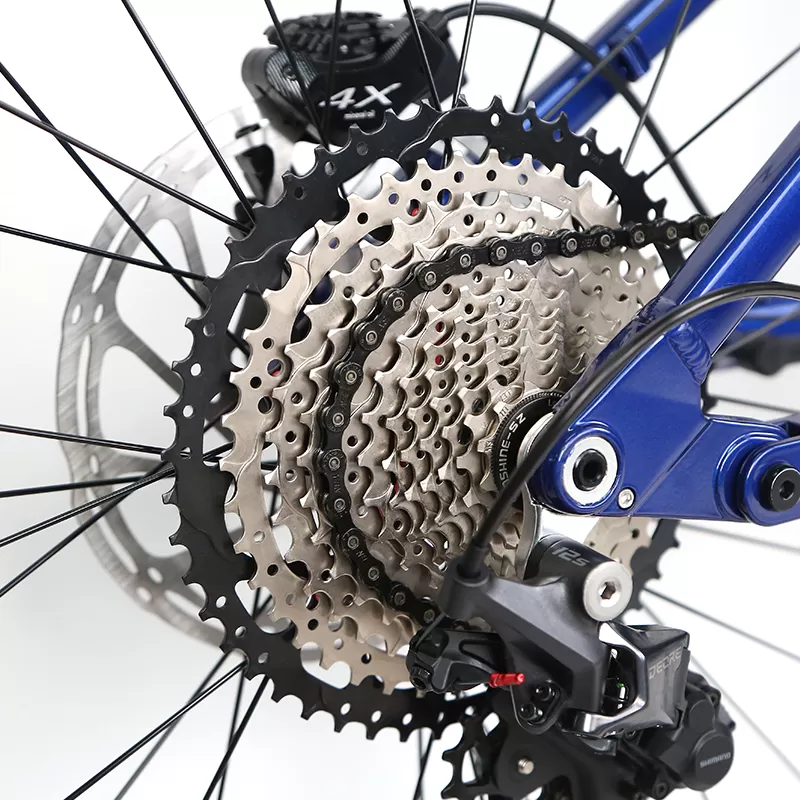

| Cassettes | SUNSHINE-12S,11-50T | SUNSHINE-12S,11-50T | SUNSHINE-12S,11-50T |
| Chain | SUMC-12S | ||
| Brake | LD400, Alu alloy CNC, 4-piston hydraulic disc, 203/203mm | ||
| Hubs | Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost | ||
| Rim | RS, Alu alloy with Double-wall&Rivets, W25×H21mm | ||
| Spoke | SHUNJIU, Circular 14G | ||
| Tire | MAXXIS, 29/27.5×2.25" | ||
| Grips | Circular 22.2×120mm, PU leather&locking Ring | ||
| Saddle | RS, Comfortable and Thickened for MTB | ||

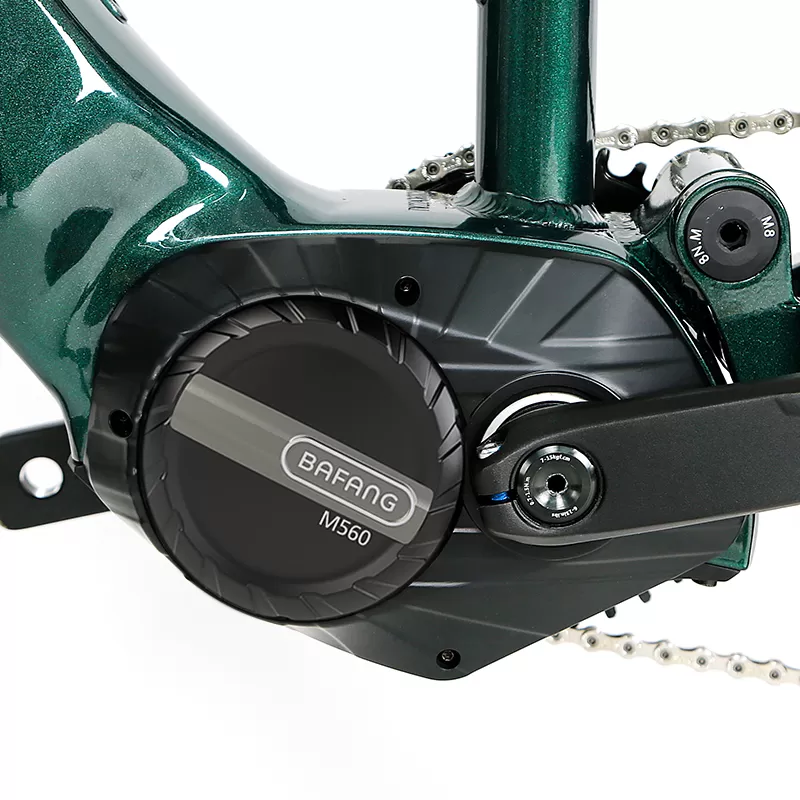

| Motor System | Bafang Mid, M510, 36V250W (48V250W) | Bafang Mid, M560, 48V500W | Bafang Mid, M560, 48V500W |
| Max Torque | 95 N.m (Peak 130N.m) | 130 N.m (Peak 150N.m) | 130 N.m (Peak 150N.m) |
| Speed Limit | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) |
| Pedal Sensor | Torque+Speed(cadence) | Torque+Speed(cadence) | Torque+Speed(cadence) |
| Battery | Samsung 21700 Li-ion, 720Wh,36V20A | Samsung 21700 Li-ion, 720Wh, 48V15A | Samsung 21700 Li-ion, 720Wh, 48V15A |
| Endurance | Max 120-140KM (pedal assist) | Max 110-130KM (pedal assist) | Max 110-130KM (pedal assist) |
| Charging Time | 6-7 Hours | 6-7 Hours | 6-7 Hours |
| Charger | 3A, DC2.1 | 3A, DC2.1 | 3A, DC2.1 |

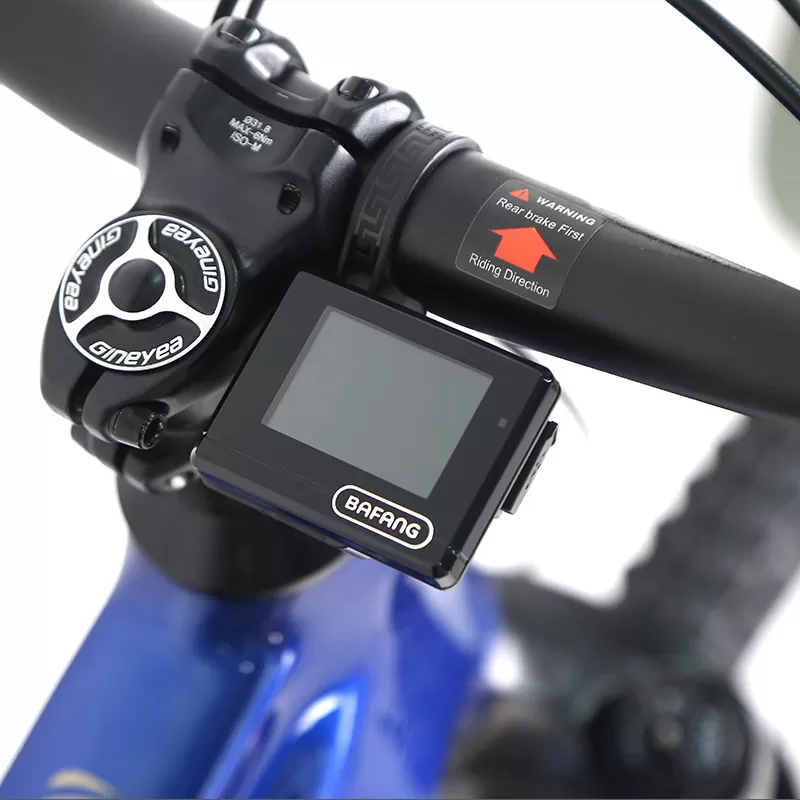

| HMI | Bafang-C245, LCD digital | Bafang-C245, LCD digital | Bafang-C245, LCD digital |
| Waterproof | IP X6 | IP X6 | IP X6 |
| Max Load | 130 KG | 130 KG | 130 KG |
